Rear Engine Axle Reverse Gearbox With 2 Forwards And Reverse For Bajaj/Tuk Tuk/Auto Rickshaw
Rear Engine Gearbox Parameters
| Ratio | H:3.51 L:6.21 |
| Power Input Spline | 20*17*4*6 |
| Power Output Spline | 25*21*5*6 |
| Gear Material | 20CrMnTi |
| Housing Diameter | 155mm |
| Gear modulus | 3.5--4mm |
| Housing Material | Casting Iron |
| Packaging | Carton, wooden case etc. |
| Spline | Rectangle |
| Speed | 2+1 |
| Brand | Zhuiye |
| Packing (pcs/ctn) | 1pcs/ctn |
| G.W. (kgs/ctn) | 18kgs/ctn |
| Fit engine | 50--400cc |
| Carton size | 370*220*210mm3 |
| Application | Tricycle/Rickshaw/ATV |
| Lubrication Oil | GL-5 85w/90 gear oil, winter GL-5 80w/90 gear oil |
Rear Engine Gearbox Introduction
1. Combined reverser with reducer. reverser is installed on reducer directly, applied for rear engine vehicle.
2. Reverser and reducer housing material are both ductile iron, strong and longevity.
3. Power input shaft is paralleled with power output and power input shaft is connected with engine by propeller. Higher transmission efficiency to improve vehicle power and economy.
4. High precision process in gear to improve loading, longevity and decrease noise.
5. Applied for all kinds of full-floating,semi-floating, and 3/4 full-foating rear axles.
6. Noise free!
7. Low Vibration!

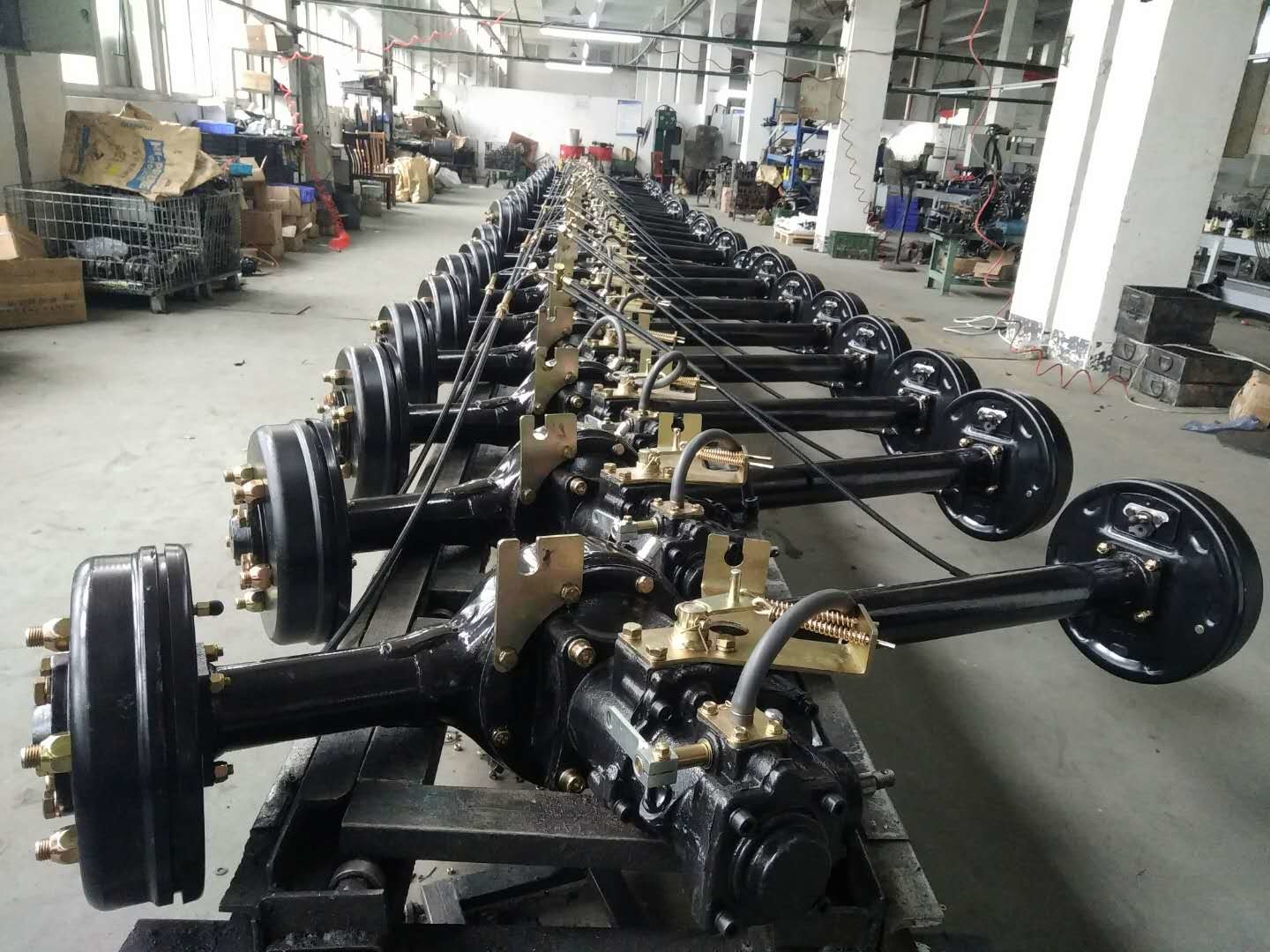

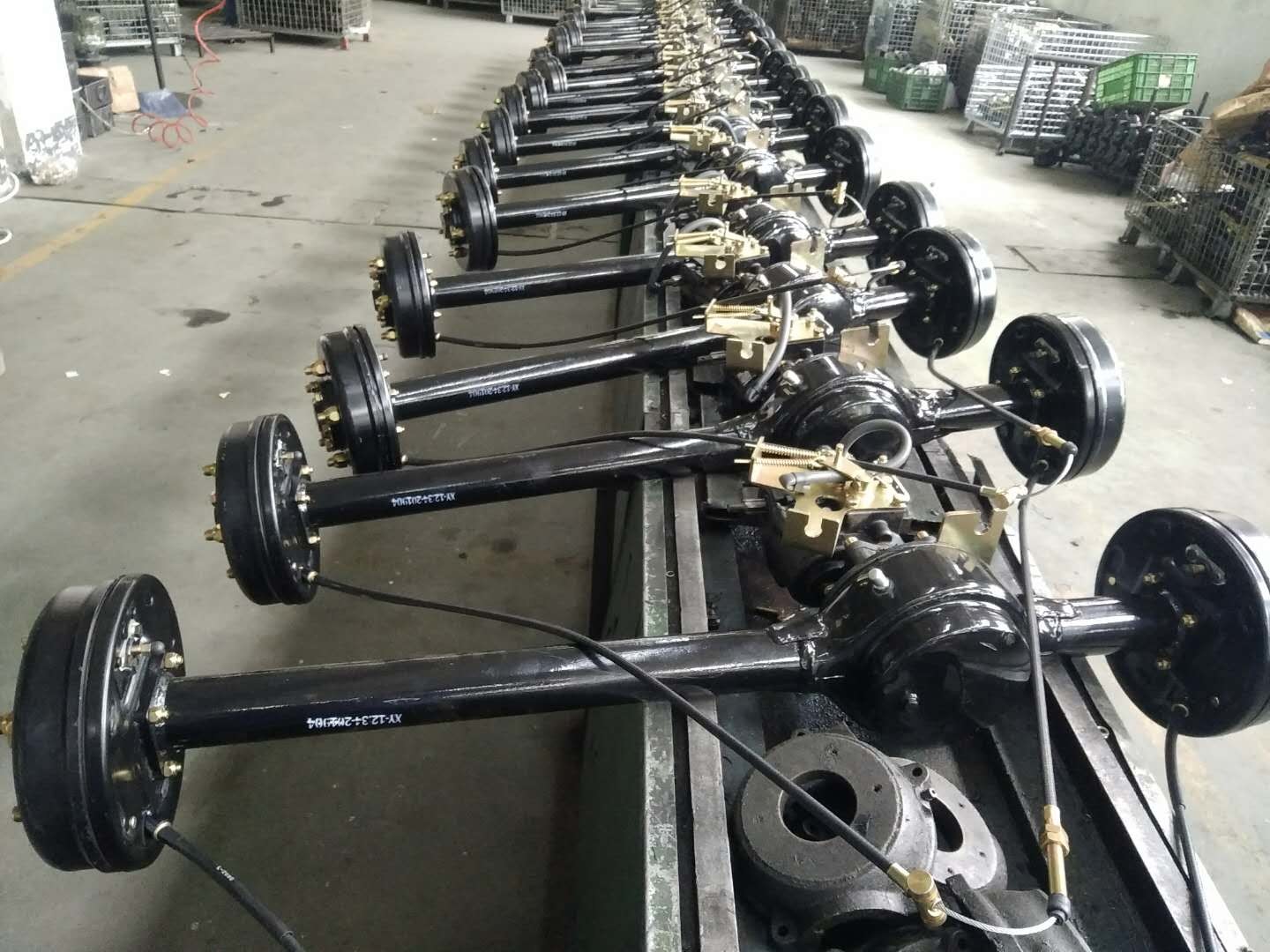

Rear Engine Gearbox More Pictures

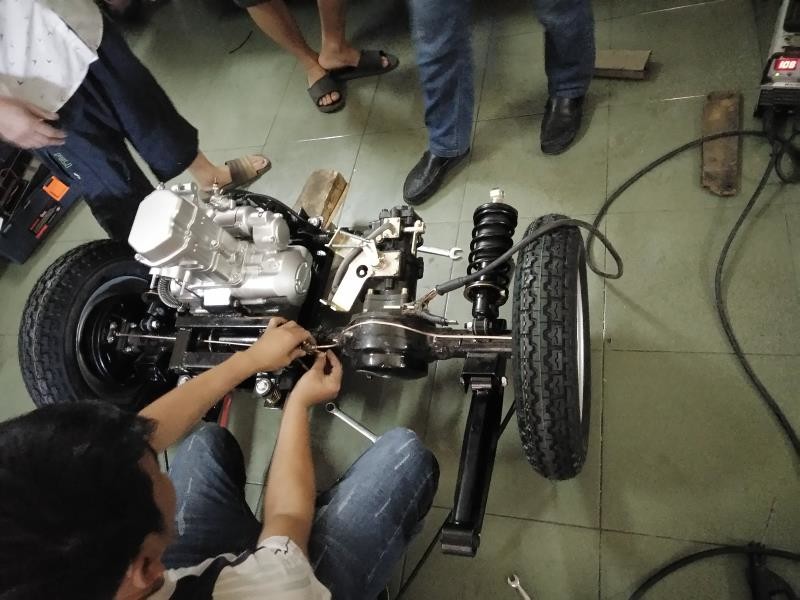

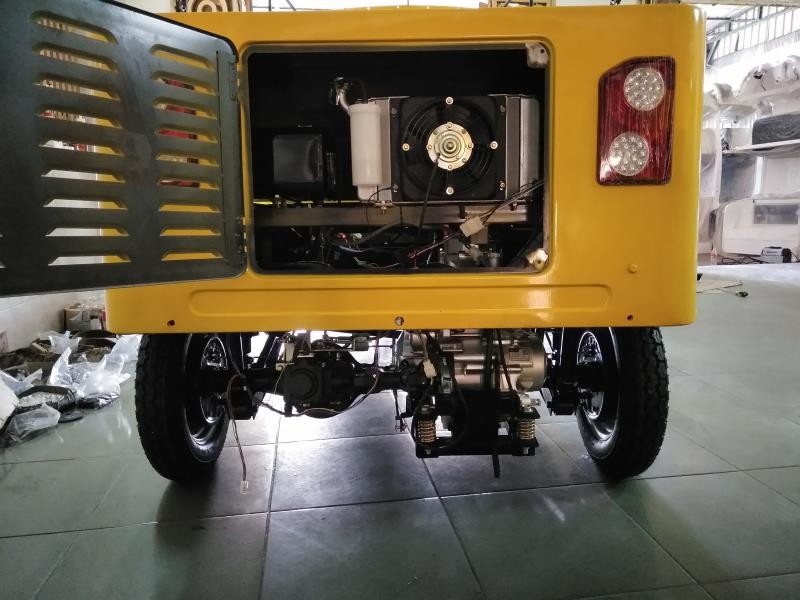

Rear Engine Gearbox Installation
Rear Engine Gearbox Packing&Shipping
Rear engine gearbox can be packed by carton(one gearbox in a carton), carton+woven bag, carton+pallet, carton+wooden box or any other packing as per your requirements. Rear engine gearbox usually chooses containerized sea shipping in quantity delivery or air delivery in sample orders.
FAQ
1. Are you manufacturer?
Yes. We are one of leading manufacturers in booster/gearbox design&development.
2. How about your delivery time?
Normally, it will take 10~12 working days after receiving deposit. The specific delivery time depends on the items and the quantity of your order.
3. What information needed to get gearbox quotation?
a). The model and displacement of your tricycle engine.
b). Pictures of your gearbox from different views.
c). Packing&Shipping requirements.
d). Quantity needed.
4. Can you produce according to the samples?
Yes, we can produce by your samples or drawings.
5. What is your sample policy?
Sample can be offered, while the customers need to bear courier cost.
6. Do you inspect the finished products?
Yes. Each step of production will be carried out inspection by QC department until finishing.
7. How do you make our business long-term and good relationship?
a). We offer good quality and competitive price products to ensure customers' market share;
b). We treat every customer as our friend and sincerely do business each other.
